Hi,

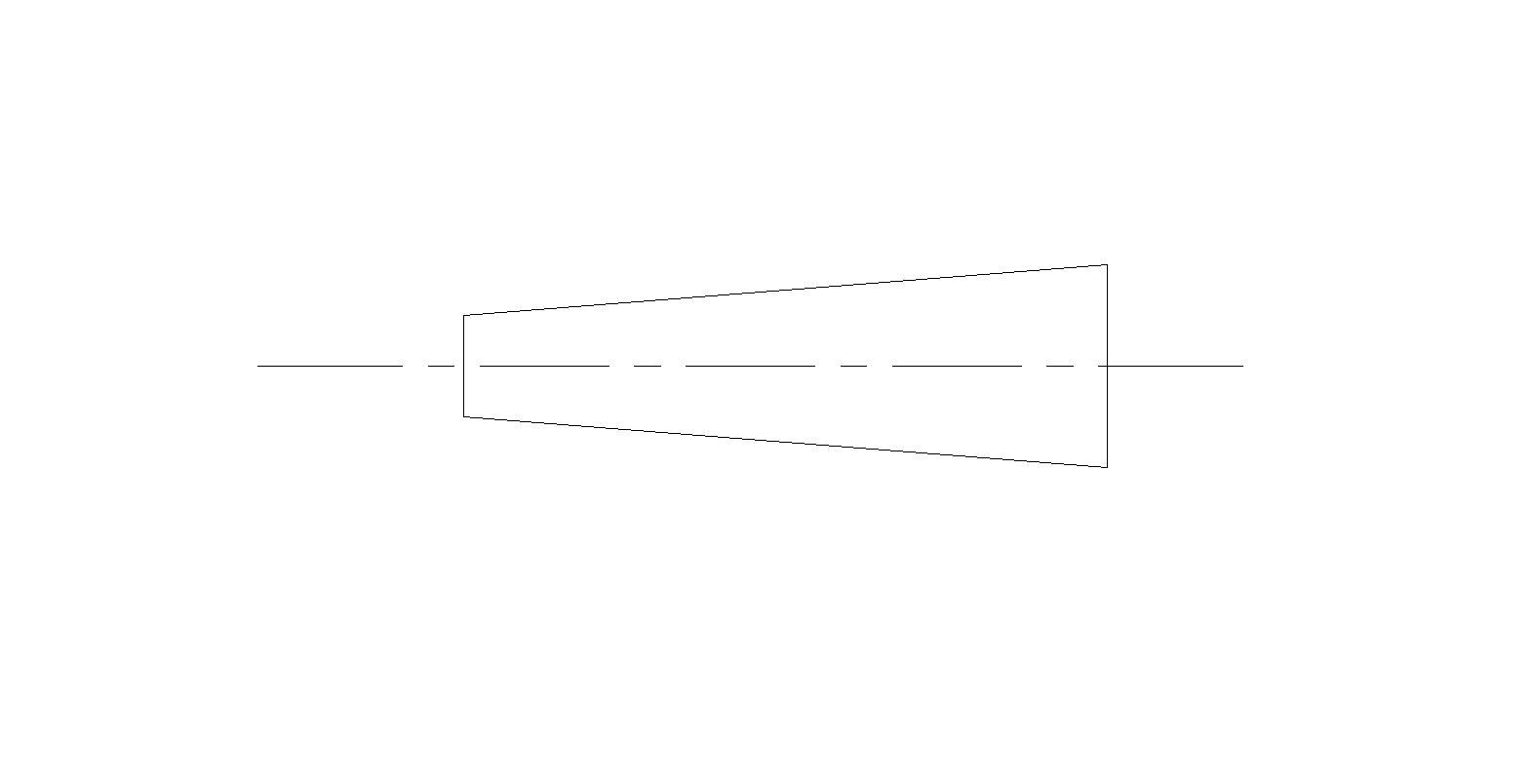

How to define the variable thickness of a shell element in Abaqus 6.8?
Thanks in advance.
| Attachment | Size |
|---|---|
| thicknessofshell.JPG | 27.32 KB |
Hi,
How to define the variable thickness of a shell element in Abaqus 6.8?
Thanks in advance.
| Attachment | Size |
|---|---|
| thicknessofshell.JPG | 27.32 KB |
Well i am not quite sure if
Well i am not quite sure if i got your answer right. But i ll do my best.
If you are working with CAE you can define a variable thickness by defining an analytical filed. Section-->Shell thickness-->Distribution-->Create. Maybe it its better if you define a local COS. So its more comfortable defining a linear function.
