Hi,
I am trying to mesh a solid in CAE using HEX elements. For some reason, I am getting an error message saying that the element topology is not right for the geometry.

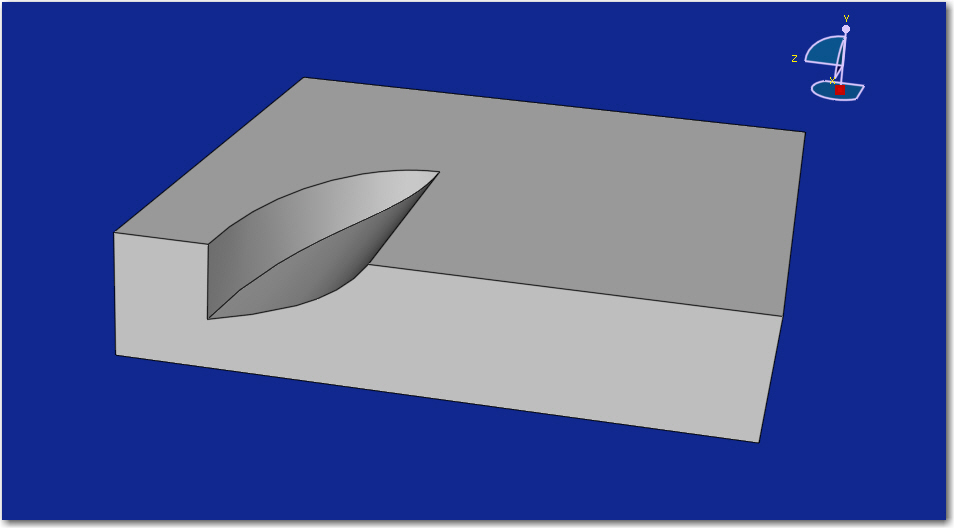

I eventually want to do crack analysis and so hex or wedge elements are essential for my model. Could anyone please help me and let me know if there is a way to go around the problem and get a hex mesh on the solid. I am attaching the .jpeg file of the geometry of the solid I want to HEX mesh.
Thanks a lot in advance
| Attachment | Size |
|---|---|
| Object Capture.jpg | 63.68 KB |
Hex Mesh for Crack Propagation
Hi Satyasrinivas,
Hope this mesh works.
I created it with a new meshing program called CheetahSTC.
It's based on the Spatial Twist Continuum. Check it out at www.moceon.com
Cheer
Dr Peter Murdoch
