TB,elastic

Submitted by mina rakhshi on

Hi friends;

I am doing modal analysis for functionally graded material in APDL ANSYS. equation of material properties has three independent variables,(x,y,z), and element type is solid186. I used from function tool for loading equation then saved it as table, hereinafter I used from TB

command:

TB,elastic,1,,,,,%hh%

hh is table name.

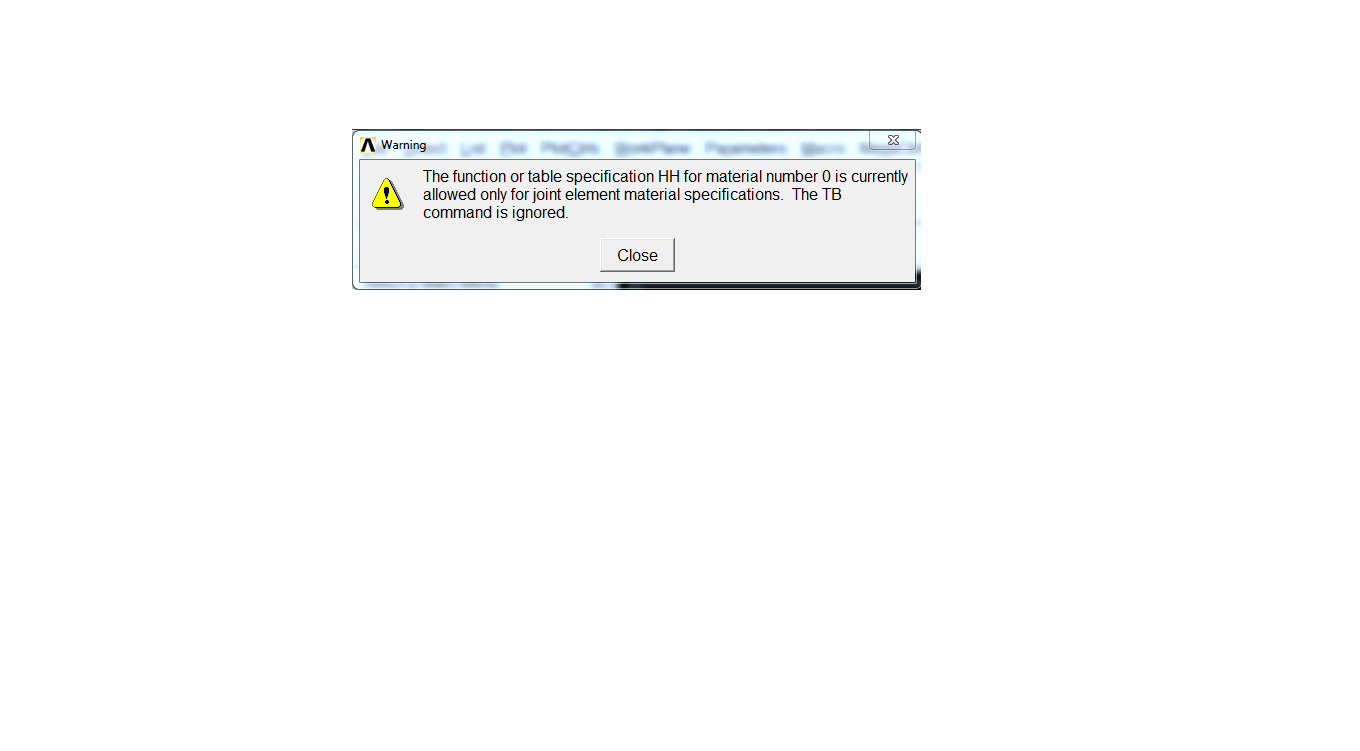

warning message was created: "the function or table specification hh for material number 0 is currently allowed for joint element material specification. The TB command is ignored.

what's problem? how can correct it?

please help me.



picture of my warning is attached below.

Regards.

Mina



Attachment Size
warning.png 52.89 KB
