Electric analysis in abaqus

Submitted by anilshirahatti on

Hi,

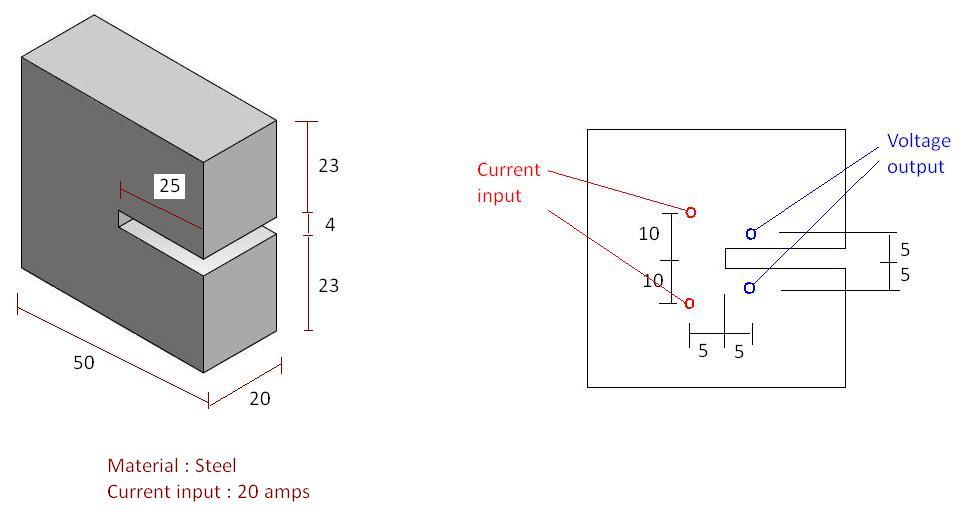

I want to do an electro-mechanical analysis in abaqus. The specimen is a steel block of 50 x 50 x 20 mm with a groove/slot of 4 x 25 x 20 mm as shown in attached image.

I want to pass 20 amps current at location shown in red and then check the voltage drop at location shown in blue colour. Please can guide me the how to do this analysis in abaqus.

Thanks

Anil Shirahatti

Attachment Size
Data.JPG 33.35 KB
