Fatigue Analysis in Ansys Workbench Environment

Submitted by ali_mechanic_64 on



Hello everybody

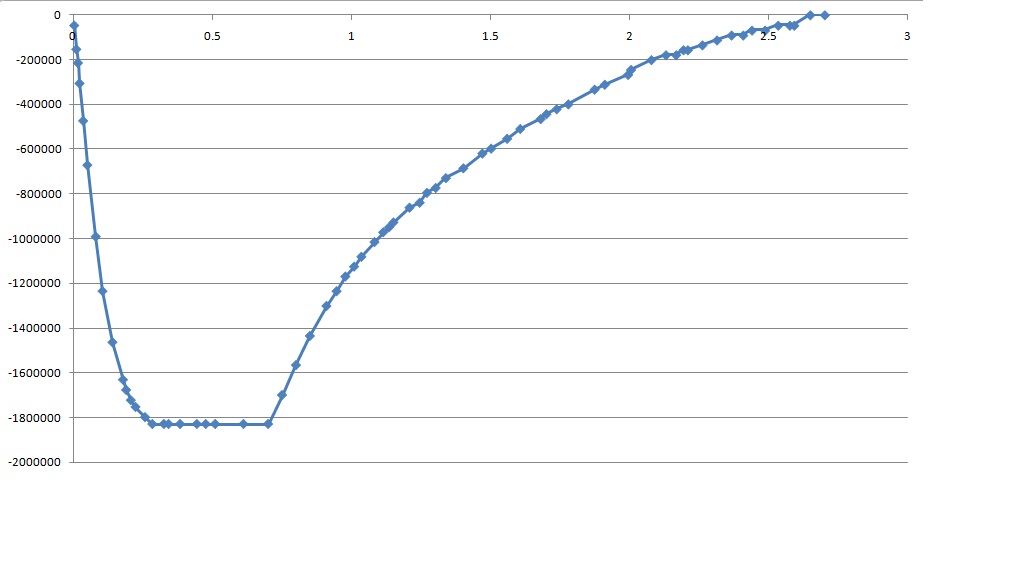

I’m trying to do a fatigue analysis with Workbench Ansys. The load exerted on model in 2.7 seconds and varies between two values (it increases, reaches to a peak and then decreases to first value) and these 2.7 s cycles continue to failure. I was wondering if it’s possible to model this load history in Workbench environment. Also if possible, please tell me how to do that.( load graph attached)

Thanks in Advance



Attachment Size
load history.jpg 58.94 KB
